Sometimes the data arrives before the understanding does. Several years ago, we ran a wastewater field test at a cheese-processing facility. Laboratory samples were collected. Results came back. We looked at the numbers, filed the reports, discussed the project and moved on.

The data was there. What we did not fully understand at the time was what the nitrogen numbers were telling us. It took seeing those results translated visually — years later — for the significance to become obvious.

The 30-Second Version

In this field application, selected laboratory measurements showed:

Total Nitrogen: 359 → 69.5 mg/L

Kjeldahl Nitrogen (TKN): 351 → 64.0 mg/L

Nitrate-Nitrite: 8.05 → 5.45 mg/L

BOD: 503 → 182 mg/L

Oil & Grease: non-detect → non-detect

The largest changes were in Total Nitrogen and TKN. That sent us back to a very basic question:

What exactly is nitrogen doing in wastewater?

What You’re Looking At

The field graphic summarizes selected laboratory measurements from the cheese-plant wastewater pond before and after treatment. The numbers are easy to read. But understanding what they represent takes a little more work.

Total Nitrogen

Total Nitrogen is the broad measurement. It includes several forms of nitrogen that may be present in water, including organic nitrogen, ammonia and oxidized forms such as nitrate and nitrite.

In this case: 359 mg/L → 69.5 mg/L

That represents an approximately 81% reduction in the measured Total Nitrogen concentration.

Kjeldahl Nitrogen — TKN

TKN stands for Total Kjeldahl Nitrogen.

It primarily represents:

organic nitrogen + ammonia nitrogen

In the measured interval: 351 mg/L → 64.0 mg/L

Approximately 82% lower.

That number is especially interesting because it tells us something about the forms of nitrogen associated with organic material and ammonia.

Nitrate-Nitrite

Nitrate and nitrite are more oxidized forms of nitrogen. The measured result changed from:

8.05 mg/L → 5.45 mg/L

Approximately 32% lower.

BOD

Biochemical Oxygen Demand reflects how much oxygen microorganisms require to break down organic matter.

The measurement changed from: 503 mg/L → 182 mg/L

Approximately 64% lower.

Nitrogen Is Not One Thing

One of the reasons nitrogen can feel confusing is that the word sounds singular. In water, it is not because nitrogen moves between forms. Organic material can break down and contribute ammonia.

Under appropriate biological and oxygen conditions, ammonia may be converted to nitrite and then nitrate through nitrification. Other biological pathways can ultimately move nitrogen out of the water system.

That means oxygen, circulation, temperature, pH, microbial populations, retention time and loading can all matter.

The Moment We Finally Saw It

For years, we had the laboratory reports. We knew the numbers had changed. But none of us came into this industry as wastewater chemists. Instead, we came into it through the technology and the field work.

It was only after rebuilding the old laboratory results into a visual case study that the relationship between the measurements became impossible to miss.

359 to 69.5.

351 to 64.

The graphic made us started asking better questions. What form of nitrogen was changing? What biological processes might have been involved? What role did circulation and oxygen transfer play? Where else does nitrogen create expensive treatment problems?

And suddenly an old field report became relevant again.

Why This Matters Beyond a Cheese Plant

Nitrogen is not only a food-processing wastewater issue. It matters in: municipal wastewater, agricultural runoff, industrial wastewater, landfill leachate, and many other water environments. The chemistry, loading and regulatory requirements differ dramatically from one site to another.

From the Field

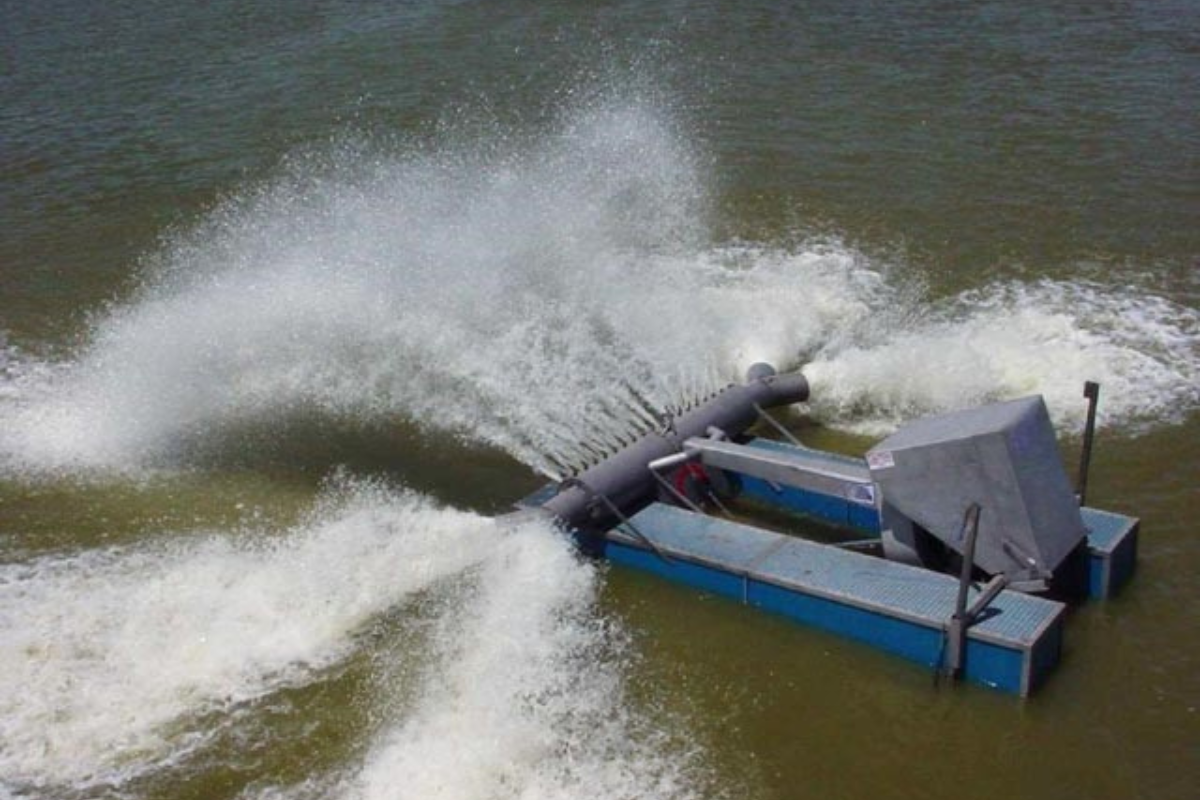

The wastewater pond in this case was treated through continuous circulation, oxygenation and full-column hydrodynamic engagement. Selected laboratory measurements showed:

81% reduction in Total Nitrogen

82% reduction in TKN

32% reduction in nitrate-nitrite

64% reduction in BOD

Oil & Grease remained non-detect

These results represent a specific field application under specific site conditions. They are not universal performance guarantees, and they do not establish performance for unrelated wastewater streams without site-specific testing. What they do provide is evidence worth investigating.

The Number to Remember

82%

Observed reduction in TKN

351 mg/L → 64.0 mg/L

What We Learned

There is a difference between possessing data and understanding it. Sometimes the laboratory report is accurate. Sometimes the measurements are meaningful. Sometimes the evidence has been sitting in a folder for years. And sometimes it takes a better way of seeing the information before you understand what you actually have.

The data did not change. Our ability to read it did.
